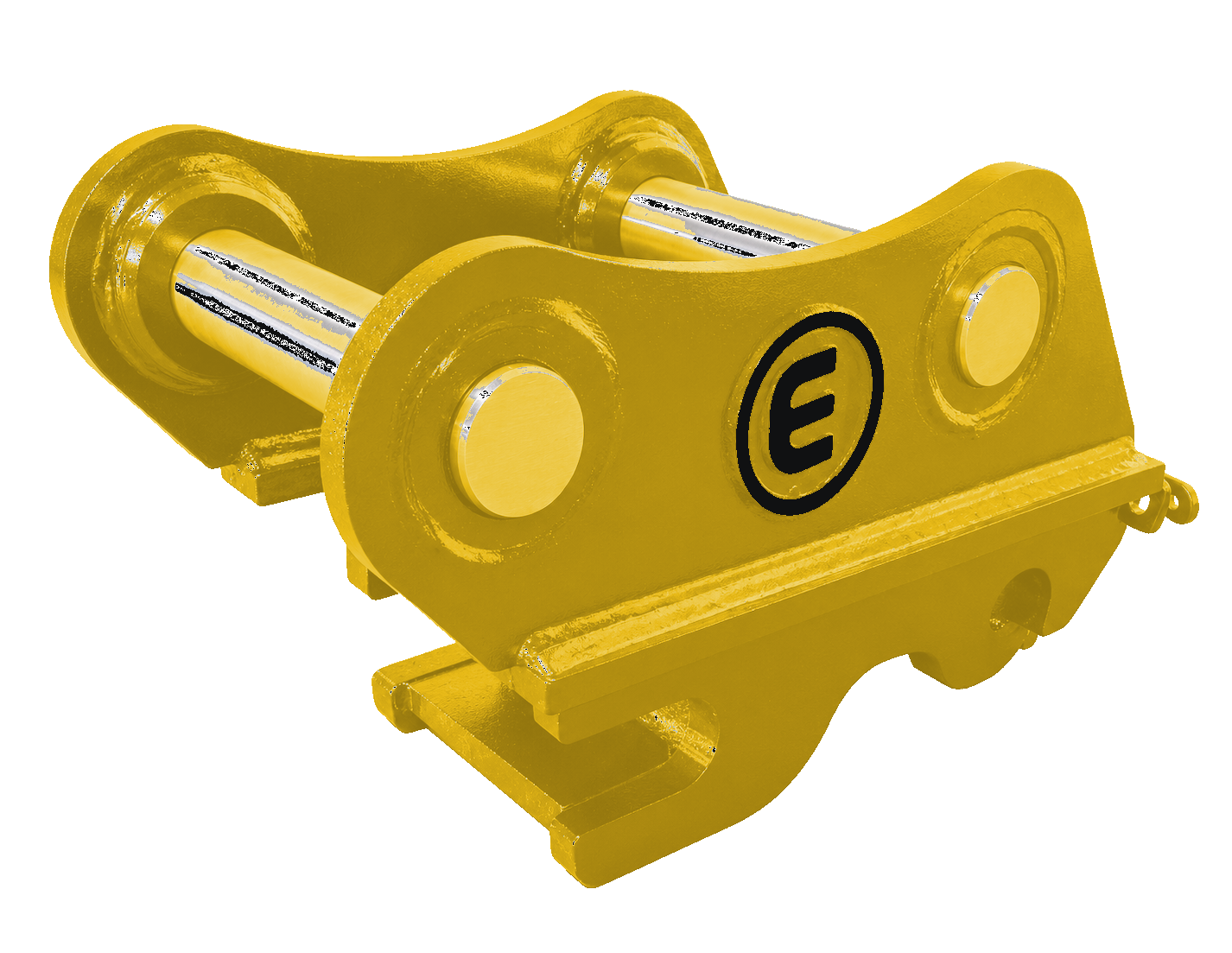

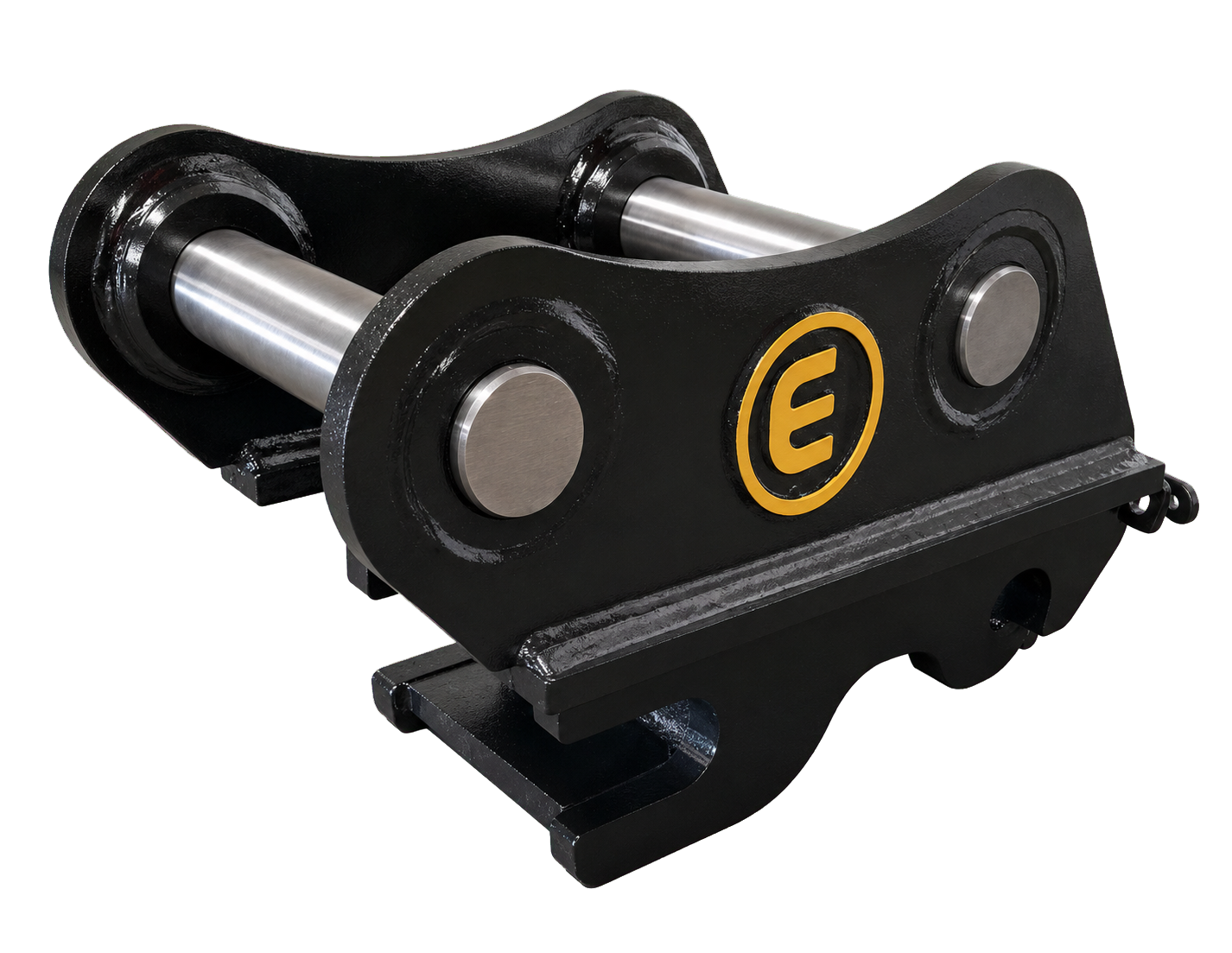

Manual Quick Coupler
A mechanically direct coupler configured for dependable machine-specific attachment changes.
- Machine-specific fitment
- Manual attachment changes
- Black or yellow paint
- One set of pins included
EAST ATTACHMENTSCALL NOW336-829-5016Excavator couplers & adapters
CHANGE TOOLS.
KEEP
WORKING.
Machine-specific connection systems for excavator attachments and universal skid-steer quick-attach tools.
MACHINE-SPECIFIC FITMENTCOUPLERS · UNIVERSAL ADAPTER1.5–70 TON EXCAVATORS
1.5–70TExcavator range
3 TYPESConnection options
AR400High-wear steel
1 YEAR100% weld warranty
Three configurations
DIRECT CHANGE.
TILT. OR ADAPT.
Every connection is configured around the machine, its pin geometry and the tools it needs to operate.
PENDING
PENDING
Hydraulic Tilt Coupler
Hydraulic tilt control provides up to 45 degrees of movement to either side.
- 45° left and 45° right
- Single or dual cylinder
- Machine-specific fitment
- One set of pins included

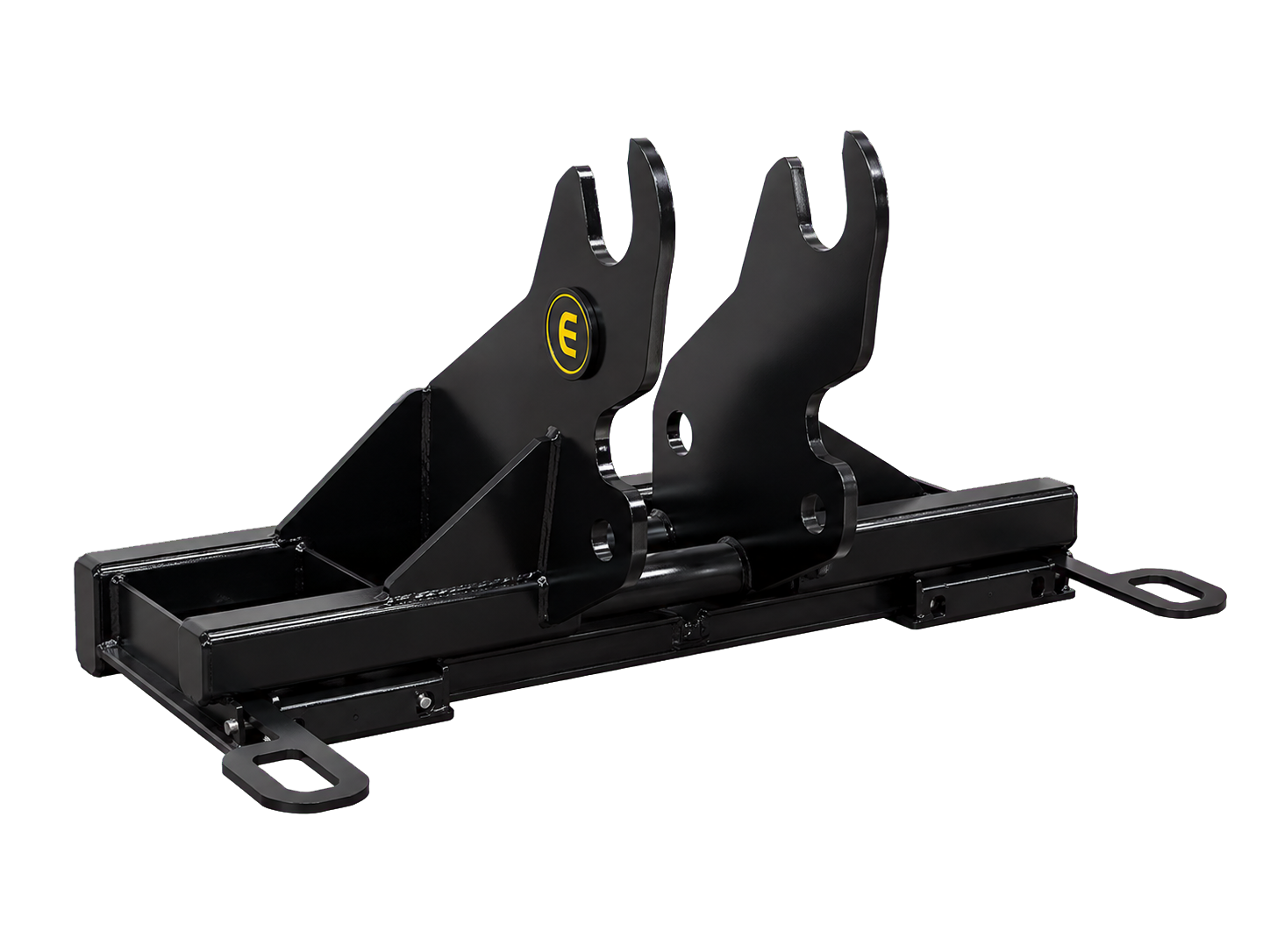

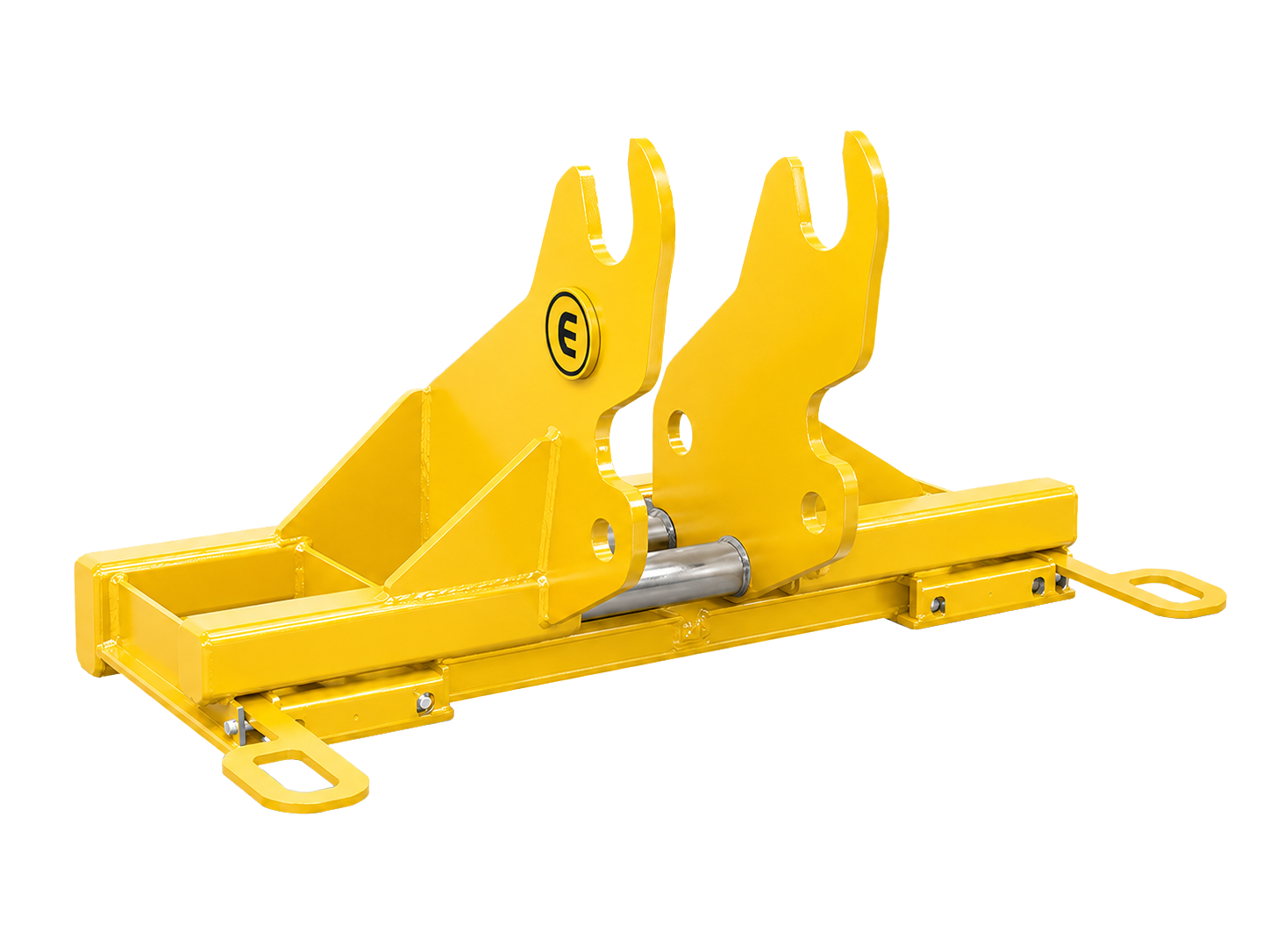

Universal Skid Steer Quick Attach
Connect universal skid-steer quick-attach buckets and tools to an excavator through a reinforced machine-specific adapter.
- Universal skid-steer interface
- Excavator-specific upper mount
- Manual locking handles
- Black or yellow paint
PIN POLICYManual and hydraulic tilt couplers include one set of machine-specific pins. Pins for the Universal Skid Steer Quick Attach are quoted separately when required.
01 / FITMENT INFORMATION
MEASURE THE
MACHINE.
Provide the machine make/model and the requested pin or coupler information. Direct-pin builds require both pin diameters in millimeters, pin centers and inside ear width.
- Machine make and model required
- Existing quick-coupler status
- Pin diameters supplied in millimeters
- Machine-specific fitment verified before fabrication
Coupler questions
SPEC THE
CONNECTION.
What does the universal adapter connect?
It provides a universal skid-steer quick-attach interface for compatible skid-steer buckets and tools while the upper mount is built around the excavator.
How far does the hydraulic coupler tilt?
The hydraulic tilt coupler provides up to 45 degrees of movement to each side and can be configured with a single or dual cylinder.
Are pins included?
Manual and hydraulic tilt couplers include one set of machine-specific pins. Adapter pins are quoted separately when required.
What is the approximate lead time?
Approximately 10–15 working days, depending on current shop volume and configuration. Call if the attachment is needed within a specific timeframe.
READY TO SPEC A CONNECTION?
